Archer
Archer is a steel frame gravel bike designed by Boskey without any limits. It is a multipurpose bike designed for all-terrain riding，even for your full-loaded expedition into the wildest remoteness. The frame and newly designed gravel fork of Archer 2021 is made of heat-treated Cr-Mo steel tubes imported from Taiwan, which is 15% stronger in stiffness than its predecessor. Furthermore, the all-new geometry design and multiple optimization and upgrading in wheelset and other components make Archer 2021 our finest gravel bike than ever.

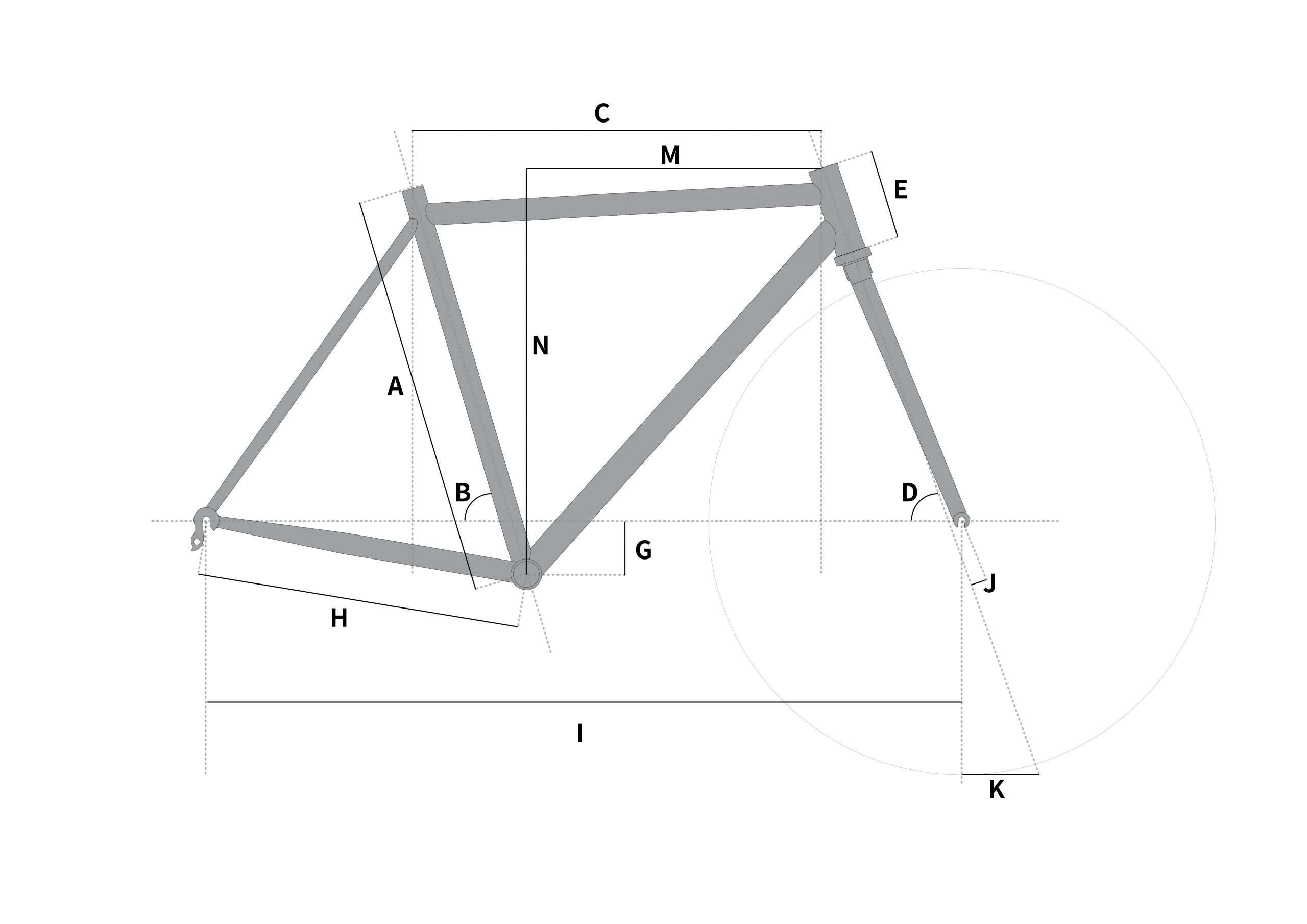

Geometry
| S | M | L | XL | ||
| A | Seat tube | 450 | 490 | 530 | 560 |
| B | Seat tube angle | 74.5 | 73.5 | 73.5 | 73 |
| C | Top tube length | 520 | 540 | 552 | 585 |
| M | Reach | 370 | 375 | 380 | 395 |
| N | Stack | 535 | 559 | 581 | 621 |
| D | Head tube angle | 70 | 70.5 | 71.5 | 72 |
| E | Head tube length | 110 | 120 | 150 | 190 |
| G | BB drop | 68 | 68 | 68 | 68 |
| H | Chain stay | 425 | 425 | 425 | 425 |
| J | Rake/offset | 45 | 45 | 45 | 45 |
| K | Trail | 75 | 72.7 | 66.5 | 63.2 |
| I | Wheelbase | 1005 | 1012 | 1020 | 1038 |
| Inseam | Standover | 730 | 760 | 790 | 830 |
| Height | Rider height | 158~169 | 170~178 | 179~183 | 184~190 |
Specs
| Frame | heat-treated Cr-Mo steel tubes from Taiwan |
| Fork | heat-treated Cr-Mo steel tubes from Taiwan |
| Handlebar | Boskey GravelTech 420/440mm 6° flare |
| Stem | Boskey GravelTech 31.8×90mm 7° |
| Headset | Aluminum alloy bearing |
| Shifters | SRAM Rival 1 |
| Crankset | Boskey GravelTech 40T |
| Rear Derailleur | SRAM Apex |
| Cassette | Boskey GravelTech 11-42T 11s |
| Chain | 11s |
| Brakes | Tektro cable disc |
| Wheelset | Boskey 32H GravelTech Disc |
| Inner tubes | 700×35/43c butyl rubber Schrader valve |
| Tires | Schwalbe Sammy Slick 700×35c |
| Seat Post | Boskey GravelTech 27.2×300mm |
| Saddle | Comfort saddle |
The price includes a pair of aluminum pedals, hex pack tool, pedal wrench
Racks, fenders， stand, bottle cages are not included.
Total weight：11kg M size
Maximum load：130kg
